5. Multiple sensors and correlations - Crash course Bayesian system identification

Exercise 5

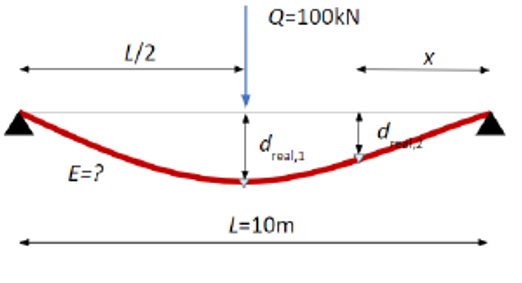

Estimate the elastic modulus ( $E$ ) of a simply supported bean from measured deflections ( $\delta_{\text{measured},1}$ , $\delta_{\text{measured},2}$ ). Notice that this is the same problem as the task in exercise 4 with one more vertical translation sensor and we have only model uncertainty and no measurement uncertainty.

Assume that we know the following:

The model uncertainty of deflection follows a normal distribution with zero mean and 1 cm standard deviation.
The model uncertainty is additive:

$\delta_\text{model} = \delta_\text{real} + \text{model}_\text{unc}$

There is no measurement uncertainty: $\delta_\text{measured} = \delta_\text{real}$ .
Model uncertainties at the measurement points are correlated: their joint distribution can be described by a bivariate normal distribution:
- With marginals as described above.
- With a (Pearson) correlation of 0.5 ( $\rho$ ).
We have a single deflection measurement: $\delta_{\text{measured},1} = 5$ cm, $\delta_{\text{measured},2} = 3.5$ cm
The second sensor is positioned at $x=L/4$
The second moment of area (flexural inertia) of the beam is known, $I = 1×10^5$ $\text{cm}^4$ .
The span of the beam is known, L = 10 m.
The self weight of the beam can be neglected, and it is loaded solely by a point load at the midspan with intensity, Q = 100 kN.
Bernoulli beam theory is applicable, the material is linear elastic, the hinges at both ends are perfect/idealized

Question¶

Question: What is the posterior of $E$ ? Assume a normal distribution on $E$ as prior with small information content (flat prior with a huge standard deviation).

Optional 💽

🖱️Right-click and select “Save link as” to download the exercise HERE 👈 so you can work on it locally on your computer

Hint

$\delta_{x<L/2} = \frac{Qx(3L^2-4x^2)}{48EI}$

In Probeye, correlations are introduced via correlation functions. Calculate what should be the correlation length to obtain the desired Pearson correlation coefficient. You can use the default Exponential function:

$\rho = \text{exp} \left(\frac{||x-x'||}{l_{corr}} \right)$

check Probeye example -Linear regression with 1D correlation-

Imports¶

import numpy as np

# Problem definition
from probeye.definition.inverse_problem import InverseProblem
from probeye.definition.forward_model import ForwardModelBase
from probeye.definition.distribution import Normal
from probeye.definition.sensor import Sensor
from probeye.definition.likelihood_model import GaussianLikelihoodModel
from probeye.definition.correlation_model import ExpModel

# Inference
from probeye.inference.emcee.solver import EmceeSolver

# Postprocessing
from probeye.postprocessing.sampling_plots import create_posterior_plot

Problem setup¶

# Fixed parameters
I = 1e9  # mm^4
L = 10_000  # mm
Q = 100  # kN

# Measurements
x_sensors = [2500, 5000]  # mm  (always from lower to higher, bug in inv_cov_vec_1D in tripy)
d_sensors = [35, 50]  # mm
sigma_model = 10  # mm
pearson = 0.5
l_corr = -np.abs(x_sensors[1] - x_sensors[0]) / np.log(pearson)  # mm (assuming exponential correlation)

# Prior
E_mean = 60  # GPa
E_std = 20  # GPa

Define forward model¶

def beam_deflection(E, x):  # x is sensor position
    return Q * x * (3 * L ** 2 - 4 * x ** 2) / (48 * E * I)

## Write your code where the three dots are

class BeamModel(ForwardModelBase):
    def interface(self):
        self.parameters = ...
        self.input_sensors = ...
        self.output_sensors = ...

    def response(self, inp: dict) -> dict:
        E = ...
        x = ...
        return {"y": [beam_deflection(..., float(x[0])), beam_deflection(..., float(x[1]))]}  # float() needed, probably a bug in probeye

Define inverse problem¶

## Write your code where the three dots are

# Instantiate the inverse problem
problem = InverseProblem(...)

# Add latent parameters
problem.add_parameter(...)

# Add fixed parameters
problem.add_parameter(...)
problem.add_parameter(...)  # Correlation length parameter

# Add measurement data
problem.add_experiment(...)

# Add forward model
problem.add_forward_model(...)

# Add likelihood model
likelihood_model = GaussianLikelihoodModel(...)  # Include correlation model
problem.add_likelihood_model(likelihood_model)

Solve with MCMC¶

emcee_solver = EmceeSolver(problem, show_progress=True)
inference_data = emcee_solver.run(n_steps=2000, n_initial_steps=2000)

Plot¶

post_plot_array = create_posterior_plot(
    inference_data,
    emcee_solver.problem,
    kind="kde",
    title="Kernel density estimate of the posterior distribution",
)

Complete Code! 📃💻

Here’s the complete code that you would run in your PC:


import numpy as np

# Problem definition
from probeye.definition.inverse_problem import InverseProblem
from probeye.definition.forward_model import ForwardModelBase
from probeye.definition.distribution import Normal
from probeye.definition.sensor import Sensor
from probeye.definition.likelihood_model import GaussianLikelihoodModel
from probeye.definition.correlation_model import ExpModel

# Inference
from probeye.inference.emcee.solver import EmceeSolver

# Postprocessing
from probeye.postprocessing.sampling_plots import create_posterior_plot

# Fixed parameters
I = 1e9  # mm^4
L = 10_000  # mm
Q = 100  # kN

# Measurements
x_sensors = [2500, 5000]  # mm  (always from lower to higher, bug in inv_cov_vec_1D in tripy)
d_sensors = [35, 50]  # mm
sigma_model = 10  # mm
pearson = 0.5
l_corr = -np.abs(x_sensors[1] - x_sensors[0]) / np.log(pearson)  # mm (assuming exponential correlation)

# Prior
E_mean = 60  # GPa
E_std = 20  # GPa

def beam_deflection(E, x):  # x is sensor position
    return Q * x * (3 * L ** 2 - 4 * x ** 2) / (48 * E * I)

# Instantiate the inverse problem
problem = InverseProblem("Beam model with two sensors", print_header=False)

# Add latent parameters
problem.add_parameter(
    "E",
    tex="$E$",
    info="Elastic modulus of the beam (GPa)",
    prior=Normal(mean=E_mean, std=E_std),
)

# Add fixed parameters
problem.add_parameter(
    "sigma",
    tex="$\sigma$",
    info="Standard deviation of the model error (mm)",
    value=sigma_model,
)
problem.add_parameter(
    "l_corr",
    tex="$l_{corr}$",
    info="Correlation length of the model error (mm)",
    value=l_corr,
)

# Add measurement data
problem.add_experiment(
    name="TestSeries_1",
    sensor_data={"x": x_sensors, "y": d_sensors}
)

# Add forward model
problem.add_forward_model(BeamModel("BeamModel"), experiments="TestSeries_1")

# Add likelihood model
likelihood_model = GaussianLikelihoodModel(
        experiment_name="TestSeries_1",
        model_error="additive",
        correlation=ExpModel(x="l_corr")
        )
problem.add_likelihood_model(likelihood_model)


#solve with MCMC
emcee_solver = EmceeSolver(problem, show_progress=True)
inference_data = emcee_solver.run(n_steps=2000, n_initial_steps=2000)

#Plot
post_plot_array = create_posterior_plot(
    inference_data,
    emcee_solver.problem,
    kind="kde",
    title="Kernel density estimate of the posterior distribution",
)
